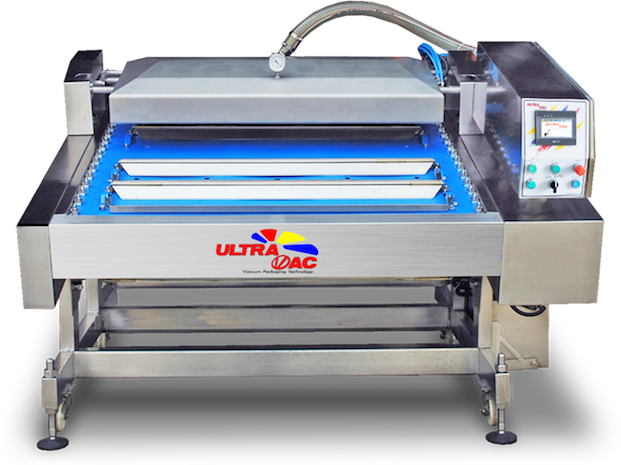

UV-1000CTD

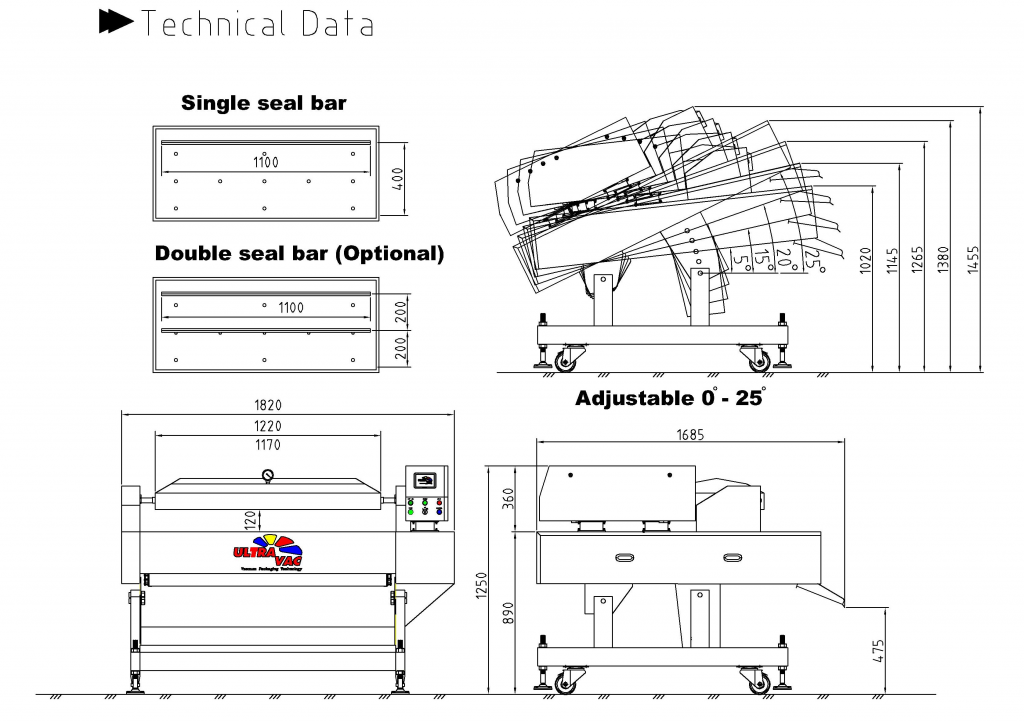

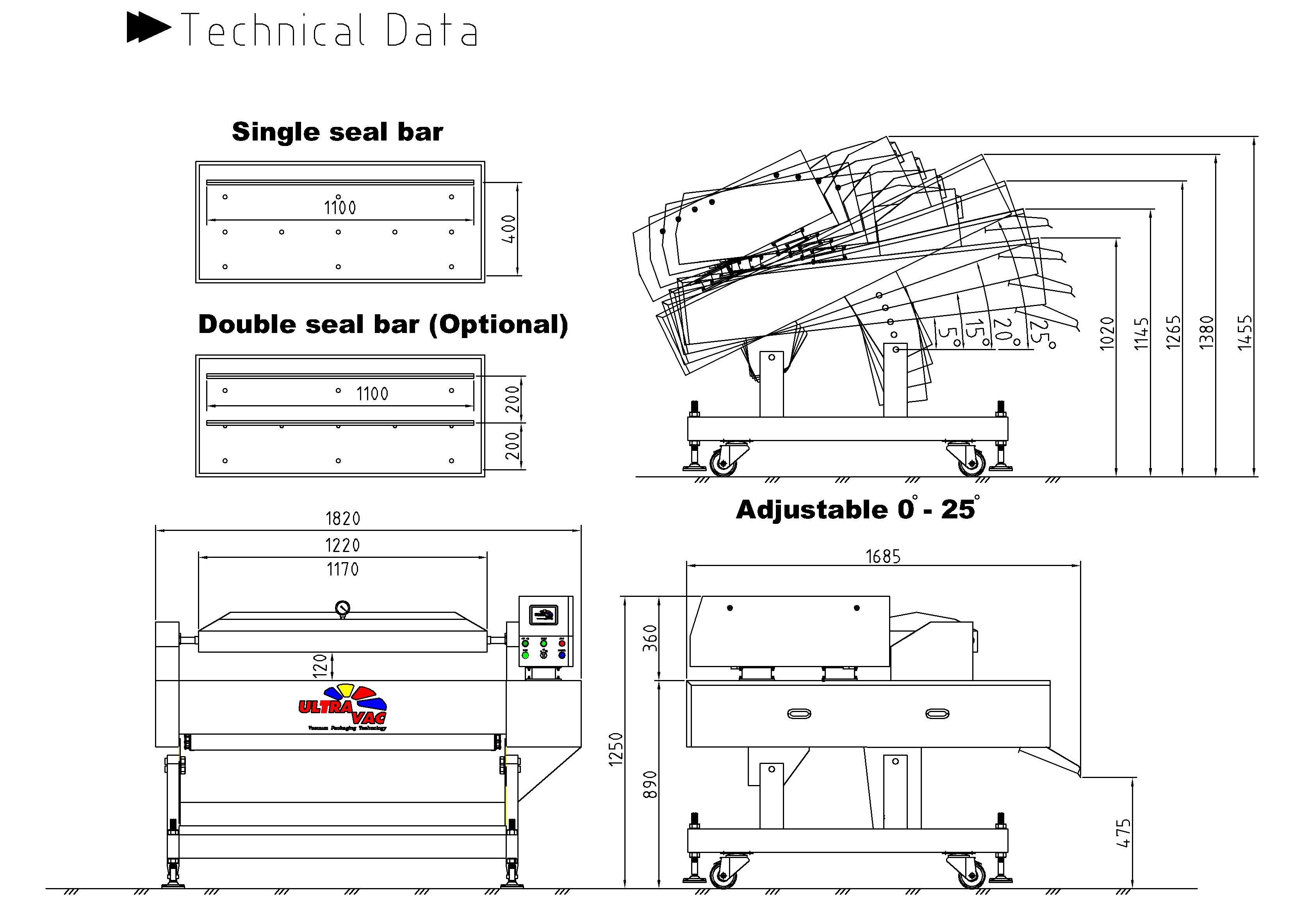

  • Machine size : W 1820 x L 1555 x H 1250 mm
  • Chamber size : W 1220 x L 520 x H 170 mm
  • Sealing bar : 1100 mm x 2 sets
  • Sealing bidth : 10 mm
  • Length from sealing bar to bottom bag : 200 mm
  • Height of product : 120 mm
  • Control system : PLC (MITSUBISHI)
  • Control banel / memory : TOUCH SCREEN 20 PROGRAMS
  • Vacuum valve : Made in Germany
  • Conveyor belt : Can be opened by 2 steps and easy to clean,
    Blue belt (Food Grade, Anti Microbial)
  • Vacuum pump capacity : 300 m3/h (Made in Germany)
  • Power of main supply : 380V / 50HZ / 3Ph
  • Control box : 24V/DC (Low voltage control)
  • Working time/min : 2 – 4 Times (Depend on product)
  • Totally built-in stainless steel 304
